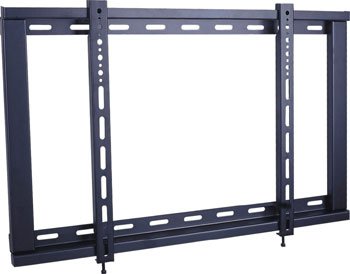

Duronic PLB104M Universal Slimline TV Wall Bracket for 30-50 inch TVs
Today Best Deals !
Svensen SV7.0 Quick Release LCD/LED TV Bracket. A well designed bracket made from the highest quality materials.. Buy Now >>
Product Description & Details
Q: How do I choose the right size wall mount bracket for my LCD/Plasma TV? Is this TV Bracket compatible with my TV?
- Check the back of your TV and find the four threaded holes (if there is no threaded holes or less then four holes, then the TV is not classified as wall-mountable);
- Measure the horizontal and vertical distances between them (in mm); for example, horizontal = 400mm vertical =200mm;
- Select a bracket whose supported max. mounting-hole pattern is larger than one you have just measured; but the overall size should be smaller than the TV otherwise the bracket will be stickout from the back of the TV;
- You might also want to check whether the TV connections/ports is facing backward or not, if yes then do NOT select super slim wall brackets like PLB104 and PLB105 series because you might have great difficulties to get the cables into the slim space between the TV and wall.
Don't just look at the TV sizes mentioned on the item title, it is only for general references.
PLB104M and PLB104L is not suitable for TVs with connection ports facing backward toward wall, otherwise it will be difficult to connect the SCART cables
The Allcam PLB104 series have the following models:
- PLB104M: for 32-50" TV/Monitors;
- PLB104L: for 40-70" LCD/Plasma TVs;
Want to install the TV in the corner? try the Swivel & Tilting bracket PLB109M
- High quality wallmount Bracket made from cold steel sheet (2mm thickness)
- Electrostatic power coating for durability

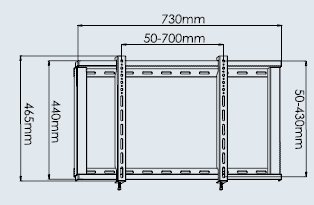

- Slim, distance from mounted TV towall ~50mm; Overal dimensions: 730x465mm; All parts such as screws and bolts are included for easy installation
- Universal with all flat panel LCD & Plasma screen with wall-mounting hole pattern within 680x410mm (Vertical x Horizontal), including but not limited to those compatible with VESA 200x200, VESA 200x400, VESA 400x400, and VESA 600x400
