Product Description & Details

Color: black
Materials: 2mm cold rolled steel plate with frosted surface

Dimension:

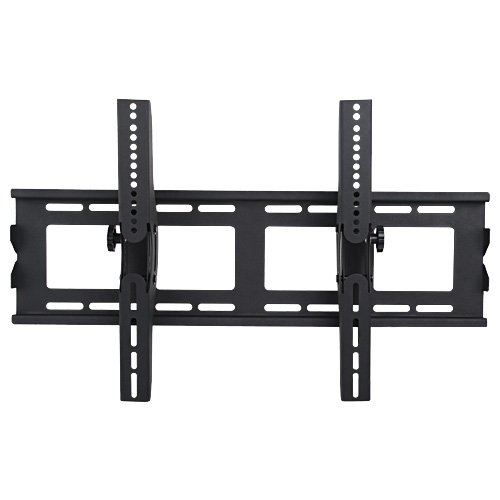

Wall panel: Approx. 70x20x2.5cm

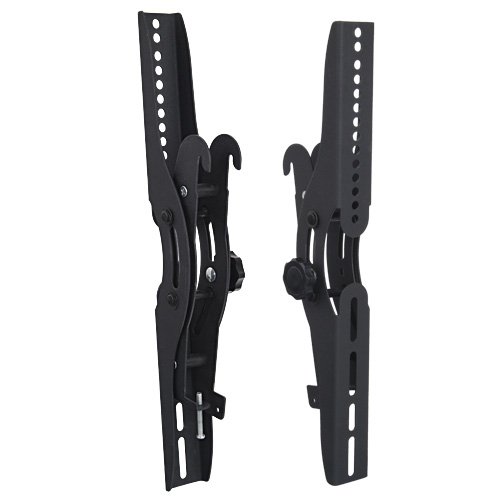

TV arm bracket: Approx. 43x8x4.5cm
Carton: 76.5x25x6cm
Features:
1. Maximum mounting hole spacing: Approx. 560(level)x400(vertical)mm
2. Distance to the wall: Approx. 8cm
3. Loading capacity: < 75Kg
4. Suitable for TV Screen from 32" to 65"
5. Adjustment angle (up to down): -5° to 15°
Installation Instructions:
1. Fix the wall panel on the solid wall levelly (Expansion screw is not needed when installing on the hard wooden panel.)
2. Install the TV arm brackets on the back of the TV
3. Hang the TV with the TV arm brackets to the wall panel
4. Tighten the security screws and fastened the wall panel

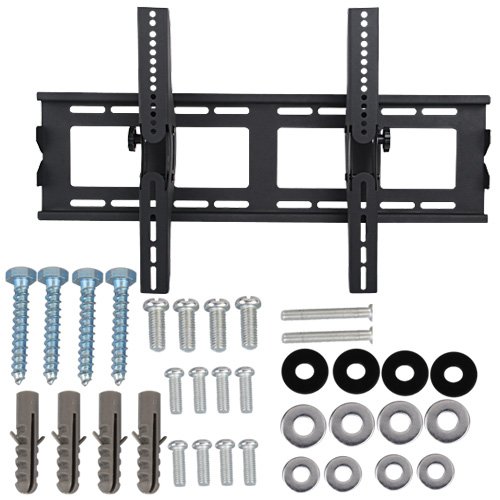

1 X Wall panel
2 X TV arm bracket
4 X Self-tapping screws
4 X Expansion screws
8 X O-metal gaskets (4 big ones and 4 small ones)
4 X O-rubber pads
12 X Screws (3 different sizes, 4 per size)

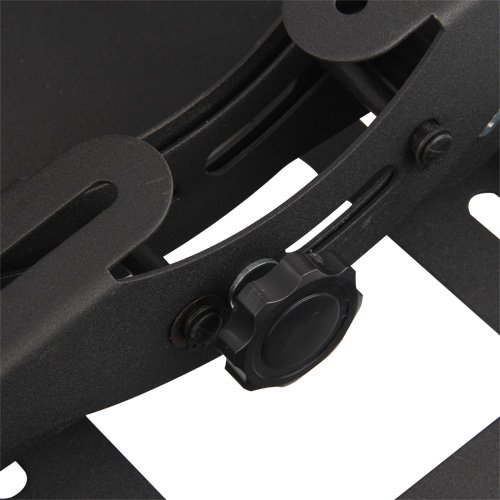

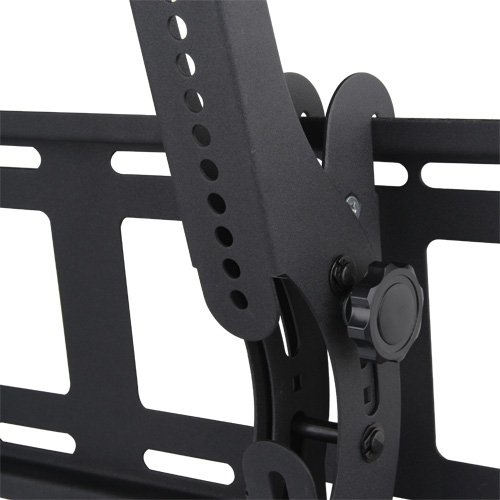

2 sets X Adjustment knob

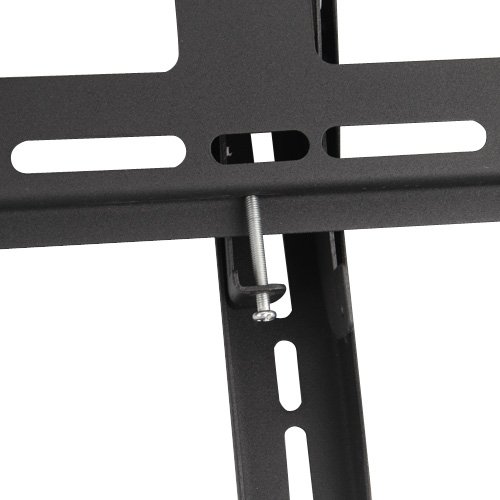

2 X Non-slip fixed screws
1 X User manual (In English)
Packed in 5 layers color carton

• Do you want to mount your TV above a fireplace, or higher on the wall?
• Do you need easy access to back of the TV, but still want a sleek appearance?
• This premium Tilt TV wall mount supports 99% 32" to 65" LCD and Plasma TVs on the market.

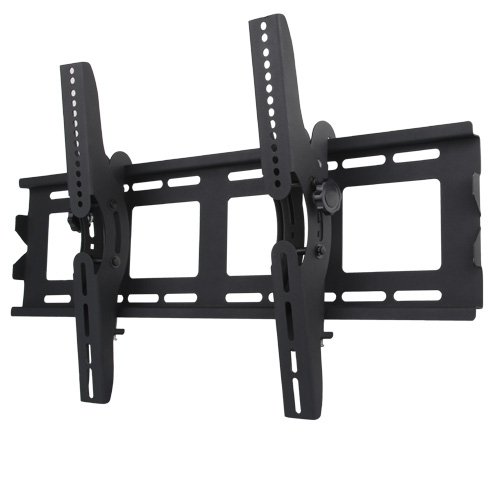

• This professionally designed mount allows for a -5 to 15 degree tilt up and down, to optimize your viewing angle from a couch or seating area.
• This mount is perfect for boardrooms, digital signage, or home theaters.
